Testone?s offers reliable testing machines for Pressure & Load Torque testing

Posted by testone on November 14th, 2017

Testone a specialized testing machine manufacturer in South Korea. We offer wide range of testing machine for testing instruments/devices of various industry to ensure its strength and reliability.

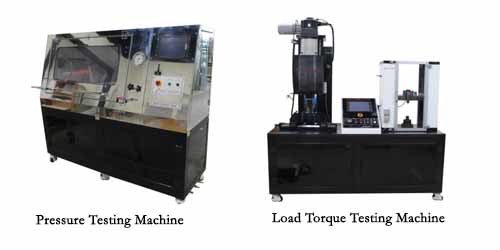

Pressure Testing Machine

Model TO-HP-50

  • This tester is for evaluating the performance, using on a Pipe pressure.
  • It is proceed with the pressure maintenance and destructive testing.
  • The pressure control is easy to use the servo system

Specifications

  • Pressure Capacity - 50 bar
  • Pressure Type - Hydrostatic
  • Pressure Accuracy - ± 0.5 %
  • Sample Distance - 1,000 mm
  • Sample size - ¼” ~ 12”
  • Test methods - Burst, Holding Power
  • Control - Servo Motor Control
  • Software - Motion set-up & control, Data analyze, Save, Print.
  • Safety Device - Emergency Stop, Limit (Pressure)
  • Power - 220 V 2P 60 Hz
  • Weight - Approx. 900 kg

Load Torque Testing Machine - Model TO-L-3

  • This tester is for evaluating Compression and Torsion characteristics of the part.
  • By applying a high-precision Torque Sensor with Load Sensor, it is to obtain more precise data.
  • It is possible to easy and quick testing in the section structure.

Specification

Torque Tester

  • Torque Capacity - 500 Nm
  • Torque Accuracy - +/-0.5 %
  • Angle Accuracy - +/-0.1 %
  • Torque Test Speed - 1 ~ 30 RPM
  • Torque speed accuracy - +/- 0.1%
  • Driving System - AC Servo Motor

Compression Tester

  • Force Capacity 50 kN
  • Load Accuracy +/-0.5 %
  • Stroke Accuracy +/-0.1 %
  • Max. Compression Test
  • Speed 500 mm/min
  • Min. Compression Test
  • Speed 0.1 mm/min
  • Speed accuracy +/- 0.1%
  • Resolution 0.5 ㎛
  • Driving System AC Servo Motor

If you are looking out for plastic testing instruments manufacturer? Contact: testone1@naver.com / testonekorea@gmail.com, Testone a leading testing instruments manufacturer in Korea
